Technical Data
A Deflection Clip With No Screws Or Additional Hardware Required

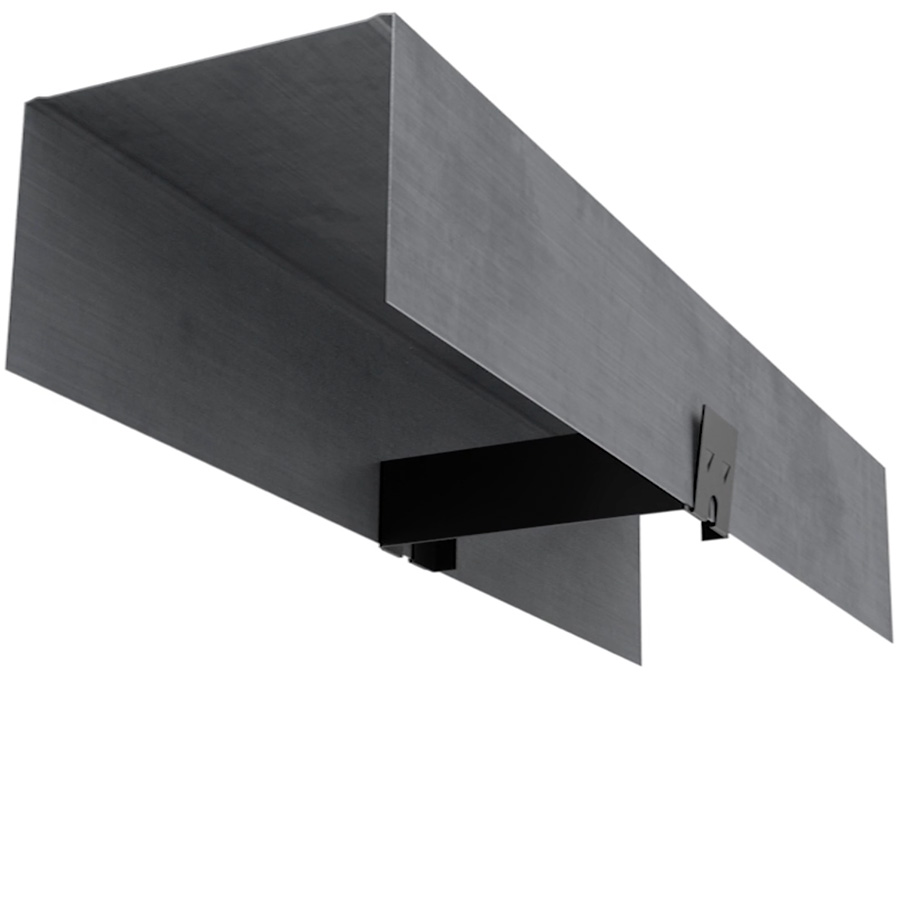

The YurClip is the next evolution of deflection clip solutions for infill framing. It’s a U.S. patented metal clip designed to work on head-of-wall conditions for interior, non-loadbearing walls.

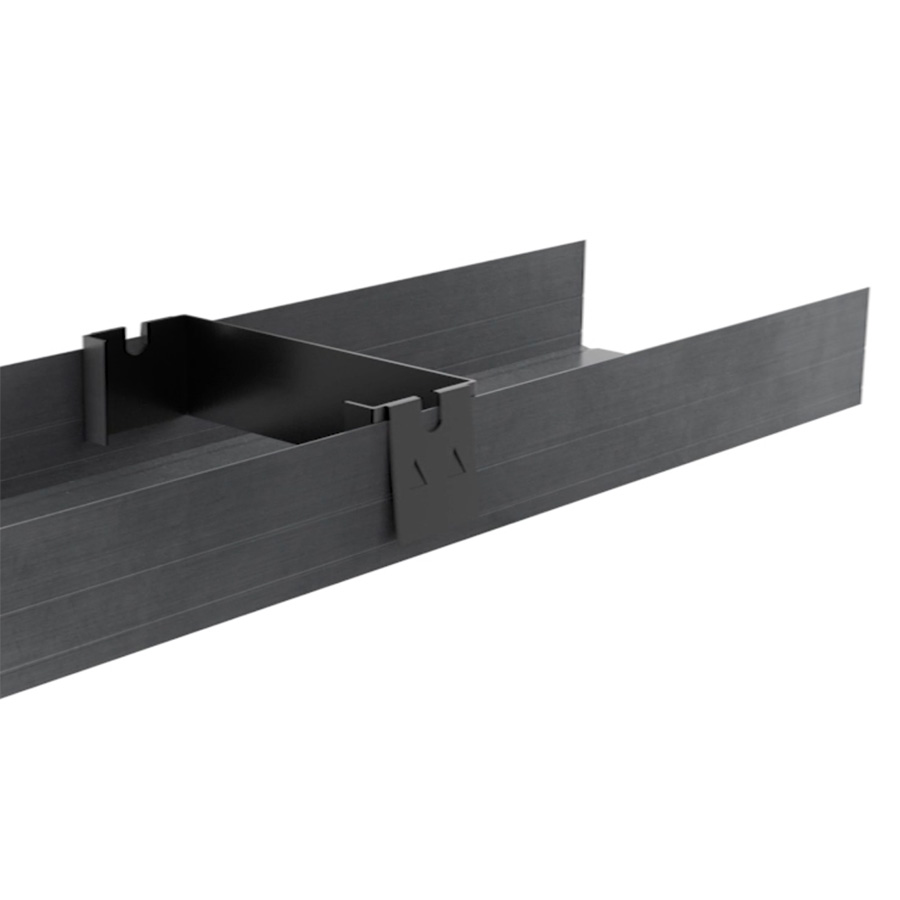

Highly adjustable to almost any layout, the YurClip requires no screws or additional hardware for installation — it simply clamps onto a deep-leg deflection track or bottom track for an easy and accurate vertical deflection connection.
YurClip Technical Specs
| Deflection Limitations | 1” (incorporated between track and length during installation) | ||||||||||
| Material Specifications | |||||||||||
| Gauge 20 gauge steel |
Design thickness .035 |

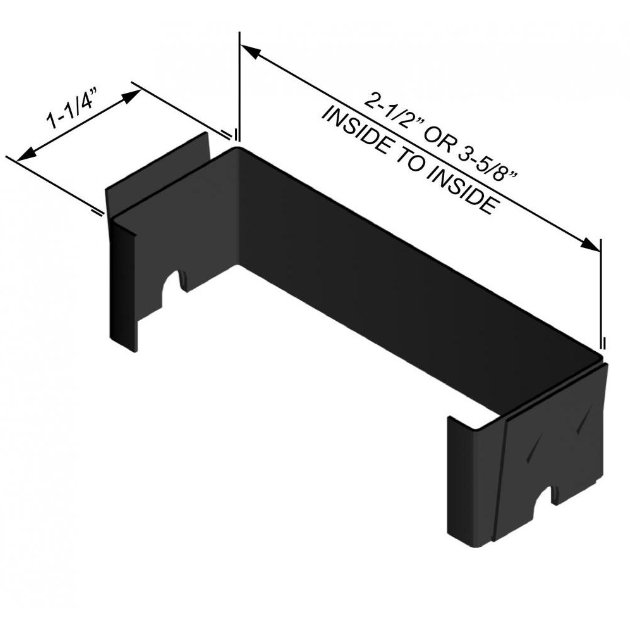

Size 2.5" or 3.625" (American Standard) |
|||||||||
| Material Steel: C1070 CRS | Carbon: .65 – .76 |
Tensile Strength (UTS) 640 – 760 MPa |
Hardness Austemper to Rc 42-48 |
Plating Commercial Zinc to .00015 – .00025 coverage (Note: we can request coverage to G30 or G60 if you desire, at an added cost) |
||||||||
| Installation Requirements | The YurClip requires no screws or additional hardware. It simply clips onto the deflection or bottom track. | ||||||||||

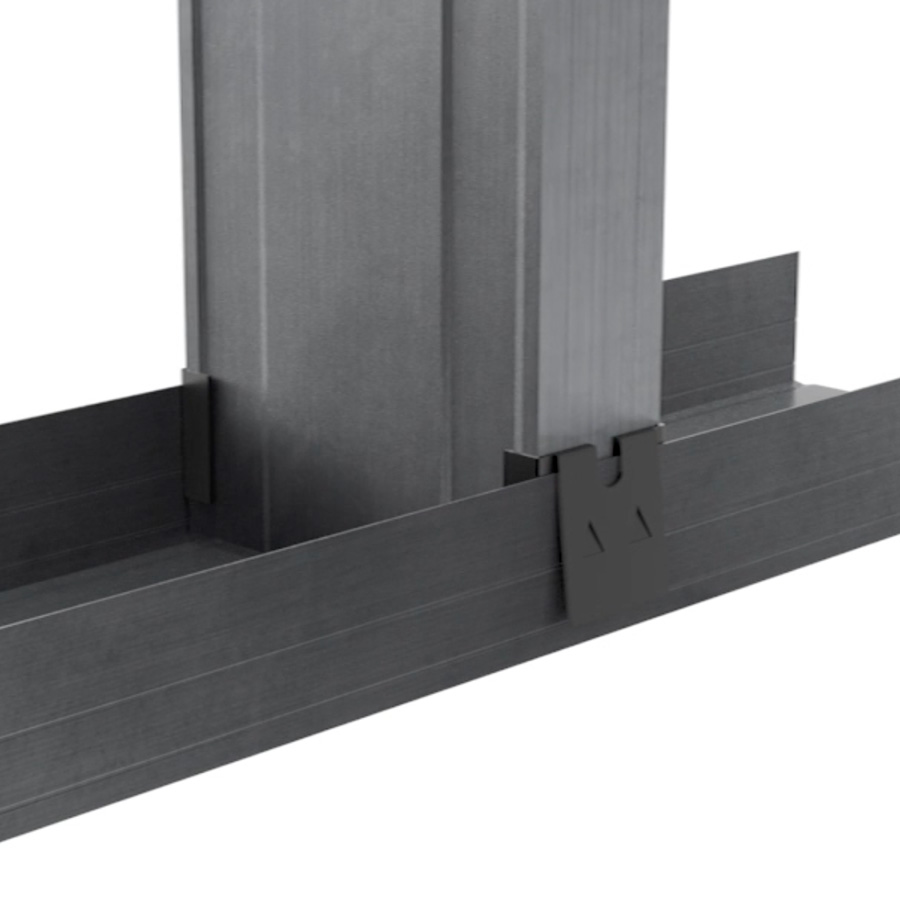

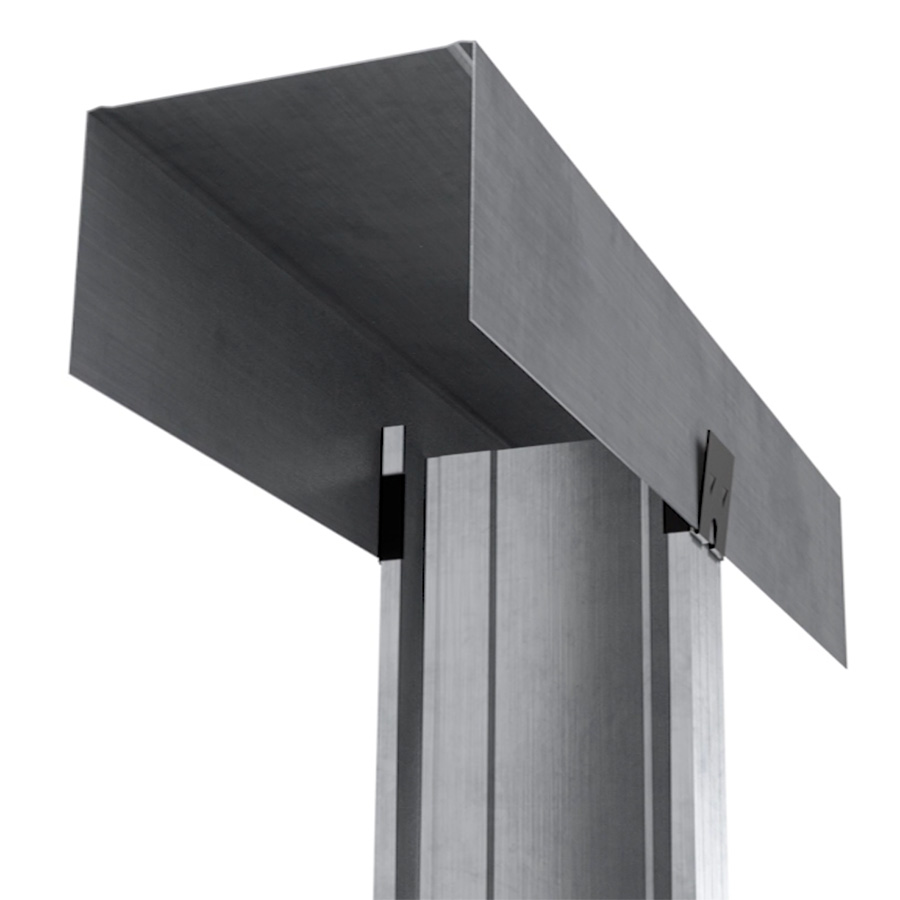

| Compatibility | Deep-leg deflection tracks Bottom tracks Studs Barjoists Steel I-beams |
||||||||||
| Fire Resistant? | Yes | ||||||||||
| Warranty | Lifetime | ||||||||||
| U.S. Patent No. | Patent #8,590,257 B2 | ||||||||||
Faster Installation & Less Labor
By eliminating the need for screws and a drill, the YurClip significantly reduces the time and labor required for installation of infill framing. And, because the installation process is simpler, it can help minimize the likelihood of errors and provide a level of flexibility you won’t find with traditional deflection clips; along with deflection tracks, the YurClip can even accommodate studs, barjoys, and steel I-beams.
Bottom line: choosing the YurClip contributes to faster construction progress, improved consistency and quality, and lower labor costs across the entirety of your project.
